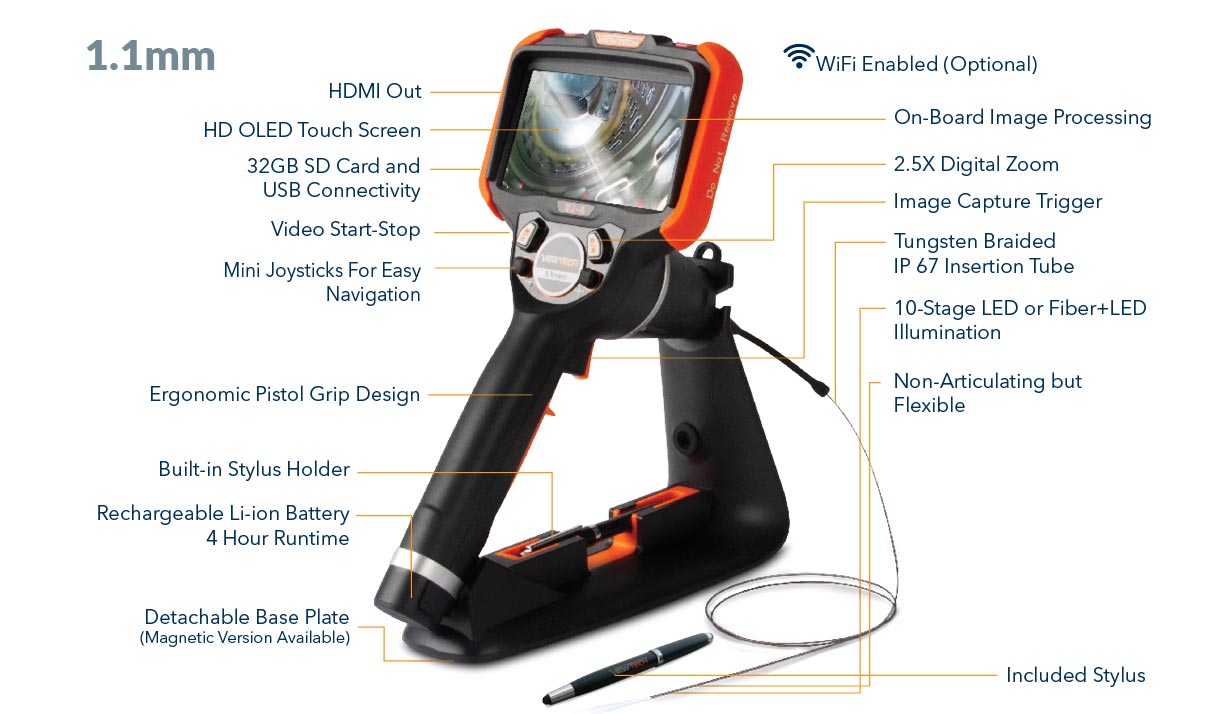

Introducing the New 1.1mm VJ-4 Video Borescope
The 1.1mm VJ-4 delivers all the features you would expect in a high-quality video borescope at a price that makes it accessible to almost anyone. Now available with an ultra-thin 1.1mm diameter insertion tube, the non-articulating VJ-4 is ideally suited to accessing the smallest areas you need to inspect.
If your inspection application passageways are small, you owe it to yourself to demo the new 1.1mm VJ-4. Available in a length of 1.0m.
Mini-Joysticks an Industry First
Use the mini-joysticks OR touchscreen to navigate all menus and adjust all settings.
Measurement & Annotation
Easy navigation of the pop-up menus, on-screen annotation and relative measurement.
Easy Storage & Organization
Rename folders, images and video files, and set a default storage location for each inspection.
Peace of Mind
Part of the ViewTech advantage is the full 1-year warranty and free loaner program.
Support After the Sale
We provide outstanding service before, during, and most importantly, after your purchase.
Next-Day Shipping
Unlike our competitors we have hundreds of borescopes at our facility, ready to ship out.
Insertion Tube
| Outer Diameter | 1.1mm |
| Length | 1.0m |
| Exterior Material | Tungsten EasyGlide, crush-resistant |
| Chemical Compatibility | Water, machine oil, heating oil, diesel, 3.5% saline concentrate |
| Articulation Range | Flexible Insertion Tube, No Articulation |
Optics
| Angle of View | 120° |
| Depth of Field | 3.0mm – 20.0mm |
| Effective Pixels | 160,000 pixels |
| Illumination Method | 4 Super high-intensity white LEDs |
| Illumination Output | ≤ 10,000lux |
Base Unit
| Display Monitor | 5.5″ OLED touch screen |
| Joystick Lock | Automatic |
| Brightness Control | 10-step LED brightness adjustment |
| Control Buttons | Two multi-function mini joysticks and left/right buttons |
| Playback | Photos, videos (w/wo audio), thumbnail view |
| Audio / Microphone | 3.5mm port |
| Removable Storage | All media captured on removable SD Card. Base Unit has no internal media storage capabilities. |
| Data I/O ports | SD card, HDMI, USB Type C |
| Battery | Two 18650B PCB-Protected Li-ion batteries (rechargeable) |
| Operating Method | One handed, portable |
| Dimensions | 13.6″ x 6.2″ x 7.3″ |
| Weight | 2.09 lbs. / .95 kg |
Manufacturing and Options
| User Interface | Pop-up menu operation, menu navigation, touchscreen |
| File Management | Photo and video recording/pause, playback, thumbnail preview, delete |
| Image Control | Image freeze, image flip, zoom in/out |
| Image Format | BMP, PNG or JPG |
| Video Format | AVI or MP4 |
| Language | English, French, Spanish |
Operating Limits
| Run Time | ≤ 3 Hours |
| Operating Temp. Base Unit | -10 – 50°C, -5 – 122°F |
| Operating Temp. Insertion Tube | -20 – 60°C, -4 – 140°F |
| IP Rating, Insertion Tube | IP67 |
Viewtech Literature
VJ-4 1.1mm BROCHURE
Download the Brochure for the ViewTech VJ-4 1.1mm by clicking the icon above or the link below.
WiFi Instructions
Download the WiFi instructions by clicking the icon above or the link below.
VJ-4 1.1mm USER MANUAL
Download the ViewTech VJ-4 1.1mm User Manual by clicking the icon above or the link below.
Packed With Power

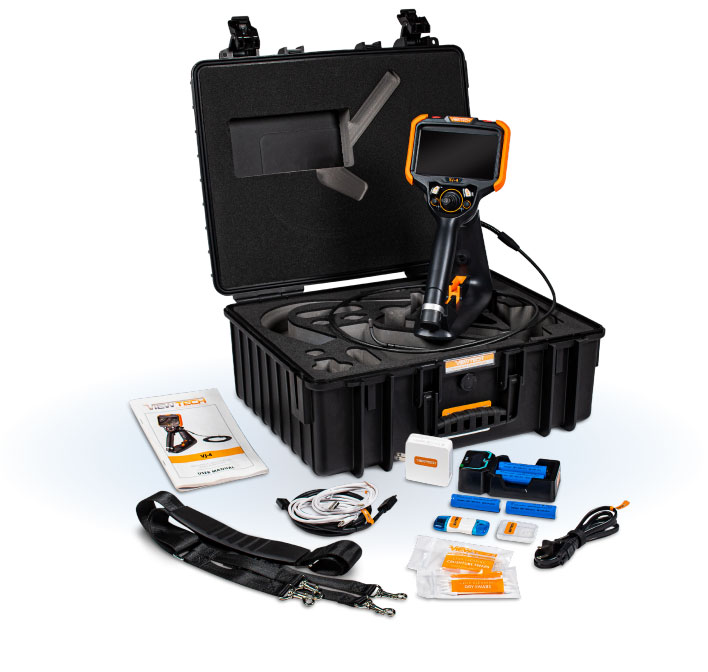

What’s Included with the 1.1mm VJ-4 Borescope:
- ViewTech’s 1.1mm video borescope
- 1.0m insertion tube
- Removable stand
- Optional magnetic floor plate stand
- Rugged carrying case
- 2 Rechargeable Li-ion batteries
- Operates on battery or AC power
- AV cords
- 32 GB full-size SD Card
- Insertion tube tip protector cap available
- Shoulder Strap
- Stylus
