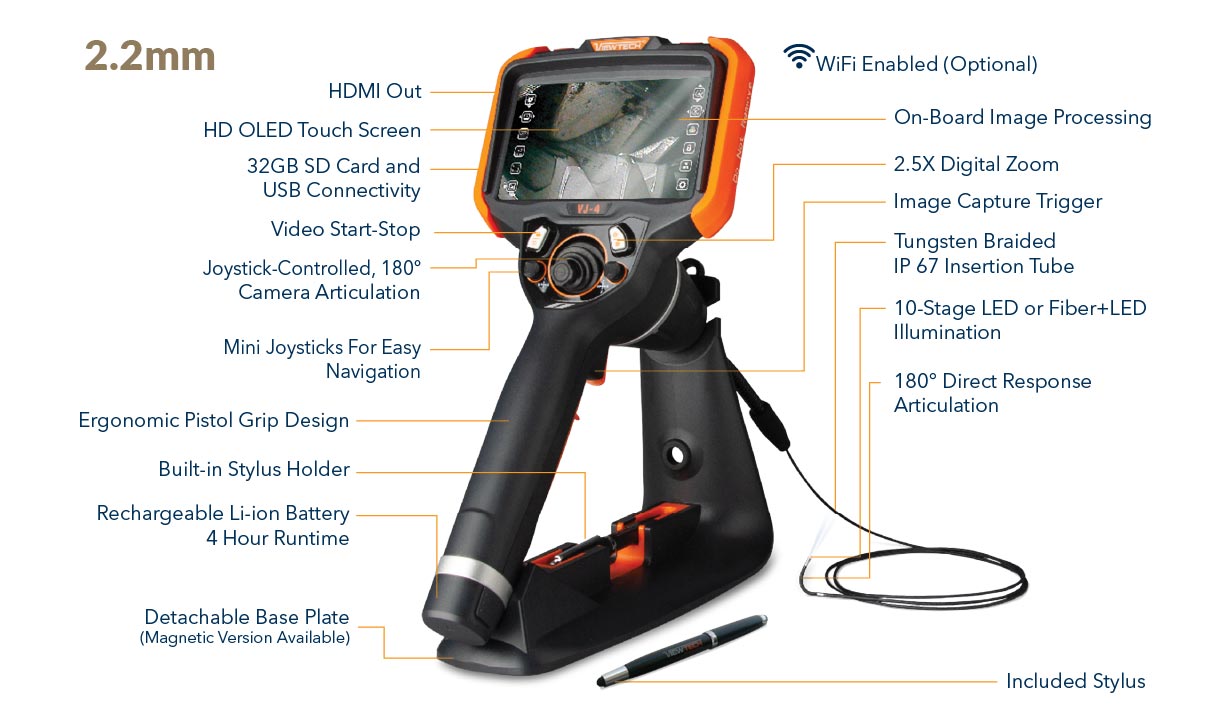

INTRODUCING THE NEW 2.2mm VJ-4 VIDEO BORESCOPE
The 2.2mm VJ-4 delivers all the features you would expect in a high-quality video borescope at a price that makes it accessible to almost anyone. Now available with an ultrathin 2.2mm diameter insertion tube, the articulating VJ-4 is ideally suited to accessing the smallest areas you need to inspect. No other company offers a smaller videoscope with full joystick-controlled, 2-way articulation.
If you perform regular maintenance inspections, you owe it to yourself to demo the new 2.2mm VJ-4. Available in 1.0m or 1.5m lengths.
In our discussions with many borescope technicians, we have found that technicians can often access their inspection targets from multiple locations. Using this principle, for example, a technician may be able to inspect a 6-foot pipe with a 2.2mm x 1-meter (3′ 3″) borescope if the inspector can start the inspection from each end of the pipe.
Mini Joysticks An Industry First
Use the mini-joysticks OR touchscreen to navigate all menus and adjust all settings.
Measurement & Annotation
Easy navigation of the pop-up menus, on-screen annotation and relative measurement.
Easy Storage & Organization
Rename folders, images and video files, and set a default storage location for each inspection.
Peace Of Mind
Part of the ViewTech advantage is the full 1-year warranty and free loaner program.
Support After The Sale
We provide outstanding service before, during, and most importantly, after your purchase.
Next-Day Shipping
Unlike our competitors we have hundreds of borescopes at our facility, ready to ship out.
Insertion Tube
| Outer Diameter | 2.2mm |
| Length | 1.0m, 1.5m or 2.0m |
| Exterior Material | Tungsten EasyGlide, crush-resistant |
| Chemical Compatibility | Water, machine oil, heating oil, diesel, 3.5% saline concentrate |
| Articulation Range | 130±10° backward (1.0m), 120±10° backward (1.5m), 100±10° backward (2.0m) |
Optics
| Angle of View | 120° |
| Depth of Field | 3.0mm – 50.0mm |
| Effective Pixels | 160,000 pixels |
| Illumination Method | 4 Super high-intensity white LEDs |
| Illumination Output | ≤ 8,000lux |
Base Unit
| Display Monitor | 5.5″ OLED touch screen |
| Articulation Control | Thumb-actuated, mechanical rocker |
| Joystick Lock | Automatic |
| Brightness Control | 10-step LED brightness adjustment |
| Control Buttons | Two multi-function mini joysticks and left/right buttons |
| Playback | Photos, videos (w/wo audio), thumbnail view |
| Audio / Microphone | 3.5mm port |
| Internal Storage | 32 GB SD Card | 10,000 photos, 8 hours video |
| Data I/O ports | SD card, HDMI, USB Type C |
| Battery | Two 18650B PCB-Protected Li-ion batteries (rechargeable) |
| Operating Method | One handed, portable |
| Dimensions | 13.6″ x 6.2″ x 7.3″ |
| Weight | 2.09 lbs. / .95 kg |
Manufacturing and Options
| User Interface | Pop-up menu operation, menu navigation, touchscreen |
| File Management | Photo and video recording, playback, thumbnail preview, delete |
| Image Control | Image freeze, image flip, zoom in/out |
| Image Format | BMP, PNG or JPG |
| Video Format | AVI or MP4 |
| Language | English, French, Spanish |
Operating Limits
| Run Time | ≤ 3 Hours |
| Operating Temp. Base Unit | -10 – 50°C, -5 – 122°F |
| Operating Temp. Insertion Tube | -20 – 60°C, -4 – 140°F |
| IP Rating, Insertion Tube | IP67 |
Viewtech Literature
VJ-4 2.2mm BROCHURE
Download the Brochure for the ViewTech VJ-4 2.2mm by clicking the icon above or the link below.
WiFi Instructions
Download the WiFi instructions by clicking the icon above or the link below.
VJ-4 2.2mm USER MANUAL
Download the ViewTech VJ-4 2.2mm User Manual by clicking the icon above or the link below.
Packed With Power
WHAT’S INCLUDED WITH THE 2.2mm VJ-4 BORESCOPE:
- ViewTech’s 2.2mm video borescope
- 1.0m or 1.5m insertion tube
- Removable stand
- Optional magnetic floor plate stand
- Rugged carrying case
- 4 Rechargeable Li-ion batteries
- Battery charger
- AV cords
- 32 GB full-size SD Card
- Insertion tube tip protector cap available
- Shoulder Strap
- Stylus
