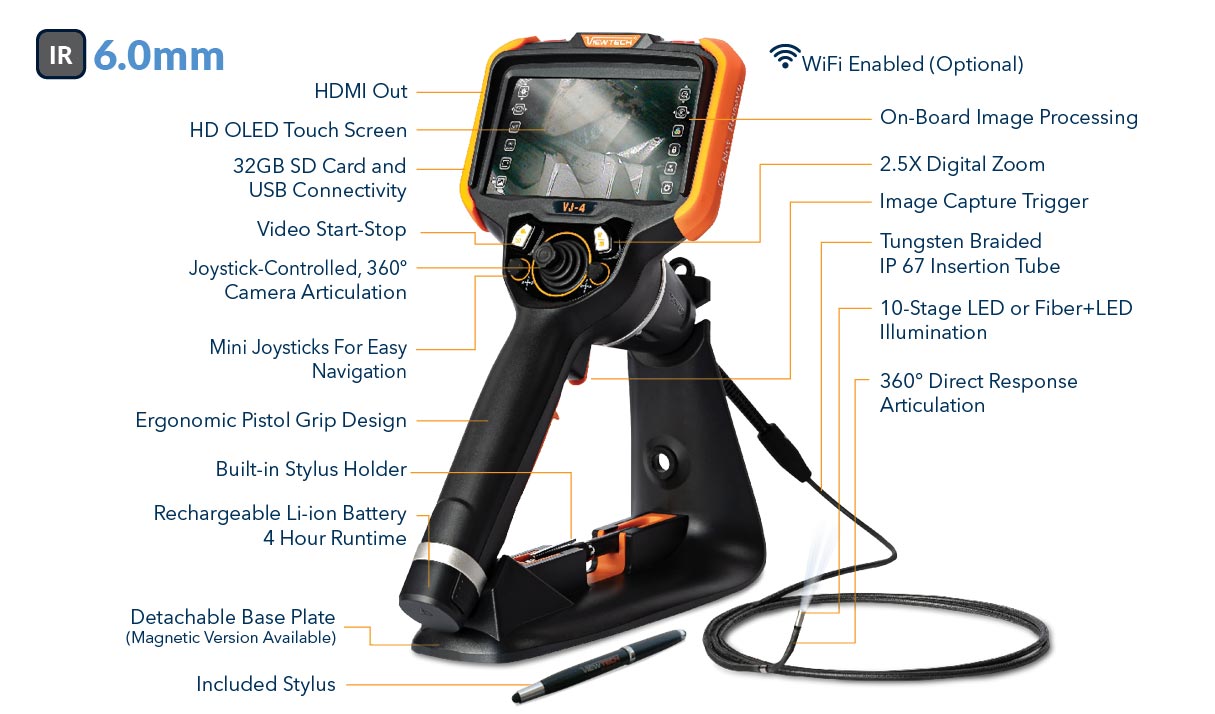

Introducing the New Infrared VJ-4 Video Borescope
Available with a 6.0mm diameter and in a length of 1.5m to suit any application. Switch between white light or IR light. IR light can light a dark area or room without being detected by the human eye, allowing for undetectable picture and video capture.
If your inspection application requires infrared lighting, you owe it to yourself to demo the new Infrared VJ-4. Available in a 1.5m length.
Quality You Can Trust
Part of the ViewTech advantage is the full 1-year warranty and free loaner program.
24-7 Support
We provide outstanding service before, during, and most importantly, after your purchase.
Huge On-Site Inventory
Unlike our competitors we have hundreds of borescopes at our facility, ready to ship out.
Industry-First Mini-Joysticks
Use the mini-joysticks OR touchscreen to navigate all menus and adjust all settings.
Measurement & Annotation
Easy navigation of the pop-up menus, on-screen annotation and relative measurement.
Easy Organization & Storage
Rename folders, images and video files, and set a default storage location for each inspection.
Insertion Tube
| Outer Diameter | 6.0mm |
| Length | 1.5m |
| Exterior Material | Tungsten EasyGlide, crush-resistant |
| Chemical Compatibility | Water, machine oil, heating oil, diesel, 3.5% saline concentrate |
| Articulation Range | 360° around, 170±10° backward (1.5m), |
Optics
| Field of View | 80° x 60° |
| Depth of Field | 8.0mm – 100.0mm |
| Effective Pixels | 307,200 pixels |
| Illumination Method | 6 Super high-intensity white LEDs |
| Illumination Output | ≤ 20,000lux |
Base Unit
| Display Monitor | 5.5″ OLED touch screen |
| Articulation Control | Thumb-actuated, mechanical rocker |
| Joystick Lock | Automatic |
| Brightness Control | 10-step LED brightness adjustment |
| Control Buttons | Two multi-function mini joysticks and left/right buttons |
| Playback | Photos, videos (w/wo audio), thumbnail view |
| Audio / Microphone | 3.5mm port |
| Removable Storage | All media captured on removable SD Card. Base Unit has no internal media storage capabilities. |
| Data I/O ports | SD card, HDMI, USB Type C |
| Battery | Two 18650B PCB-Protected Li-ion batteries (rechargeable) |
| Operating Method | One handed, portable |
| Dimensions | 13.6″ x 6.2″ x 7.3″ |
| Weight | 2.09 lbs. / .95 kg |
Manufacturing and Options
| User Interface | Pop-up menu operation, menu navigation, touchscreen |
| File Management | Photo and video recording/pause, playback, thumbnail preview, delete |
| Image Control | Image freeze, image flip, zoom in/out |
| Image Format | BMP, PNG or JPG |
| Video Format | AVI or MP4 |
| Language | English, French, Spanish |
Operating Limits
| Run Time | ≤ 3 Hours |
| Operating Temp. Base Unit | -10 – 50°C, -5 – 122°F |
| Operating Temp. Insertion Tube | -20 – 60°C, -4 – 140°F |
| IP Rating, Insertion Tube | IP67 |
Viewtech Literature
VJ-4 Infrared BROCHURE
Download the Brochure for the ViewTech VJ-4 6.0mm by clicking the icon above or the link below.
WiFi Instructions
Download the WiFi instructions by clicking the icon above or the link below.
VJ-4 6.0mm USER MANUAL
Download the ViewTech VJ-4 6.0mm User Manual by clicking the icon above or the link below.
Packed With Power
What’s Included with the Infrared VJ-4 Borescope:
- ViewTech’s 6.0mm infrared video borescope
- 1.5m or 2.0m insertion tube
- Removable stand
- Optional magnetic floor plate stand
- Rugged carrying case
- 4 Rechargeable Li-ion batteries
- Battery charger
- AV cords
- 32 GB full-size SD Card
- Insertion tube tip protector cap available
- Shoulder Strap
- Stylus
