Introducing the New 8.4mm Articulating Triple Camera VJ-4 Video Borescope

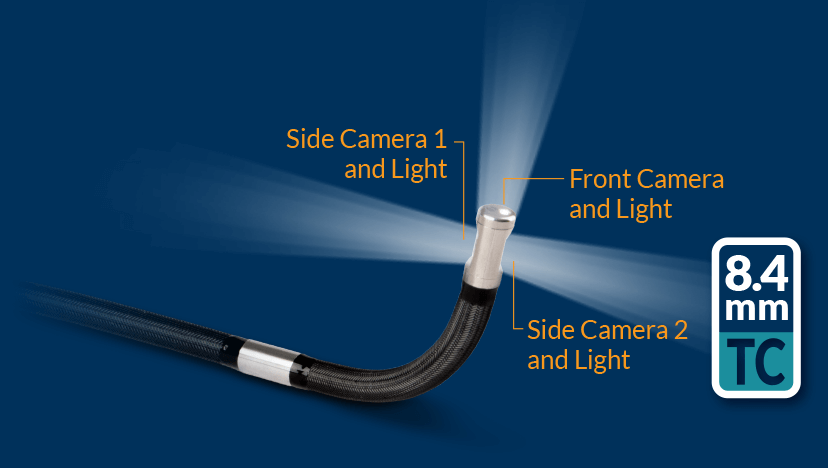

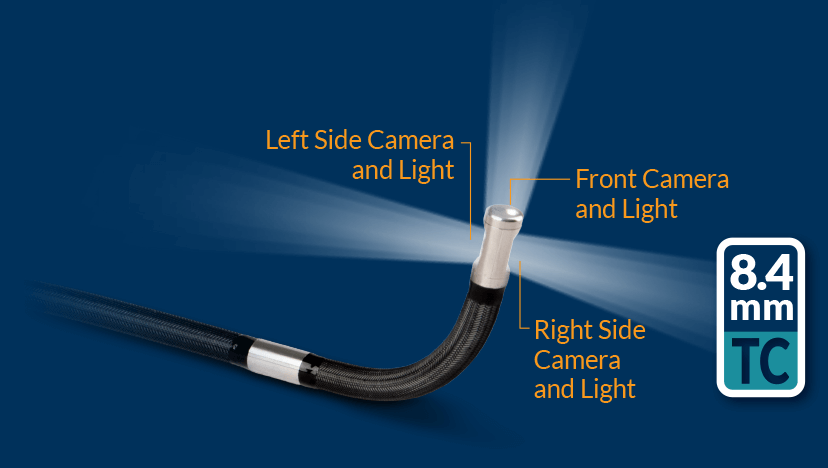

The new VJ-4 Triple Camera video borescope has insertion tube lengths of 1.5 meters to 8.0 meters. The VJ-4 Triple Camera assists in viewing straight ahead and 90 degrees from both sides which gives you an almost 360 degree view. Users can switch between the three cameras to view two angles at once, while keeping the borescope inside the current inspection area. Like all other VJ-4 borescopes, the Triple Camera borescopes feature Reference Measurement and On-Screen Annotation functionality.
If you perform regular maintenance inspections, you owe it to yourself to demo the new Triple Camera VJ-4. Available in 1.5m, 3.0m, 5.0m or 8.0m lengths.
Articulating Triple Camera Modules – Now Available in Four Lengths
Quality You Can Trust
Part of the ViewTech advantage is the full 1-year warranty and free loaner program.
24-7 Support
We provide outstanding service before, during, and most importantly, after your purchase.
Huge On-Site Inventory
Unlike our competitors we have hundreds of borescopes at our facility, ready to ship out.
Industry-First Mini-Joysticks
Use the mini-joysticks OR touchscreen to navigate all menus and adjust all settings.
Measurement & Annotation
Easy navigation of the pop-up menus, on-screen annotation and relative measurement.
Easy Organization & Storage
Rename folders, images and video files, and set a default storage location for each inspection.
Insertion Tube
| Outer Diameter | 8.4mm |
| Length | 1.5m, 3.0m, 5.0m or 8.0m |
| Exterior Material | Tungsten EasyGlide, crush-resistant |
| Chemical Compatibility | Water, machine oil, heating oil, diesel, 3.5% saline concentrate |
| Articulation Range | 360° around 120±10° backward |
Optics
| Angle of View | 100° (front) 100° (left and right sides) |
| Depth of Field | Front View: 8.0mm – 100.0mm Side View 1: 5.0mm – 50.0mm Side View 2: 5.0mm – 50.0mm |
| Effective Pixels | 921,600 pixels |
| Illumination Method | Super high-intensity white LEDs |
| Illumination Output | Front View ≤ 30,000lux Right Side View: ≤ 30,000lux Left Side View: ≤ 30,000lux |

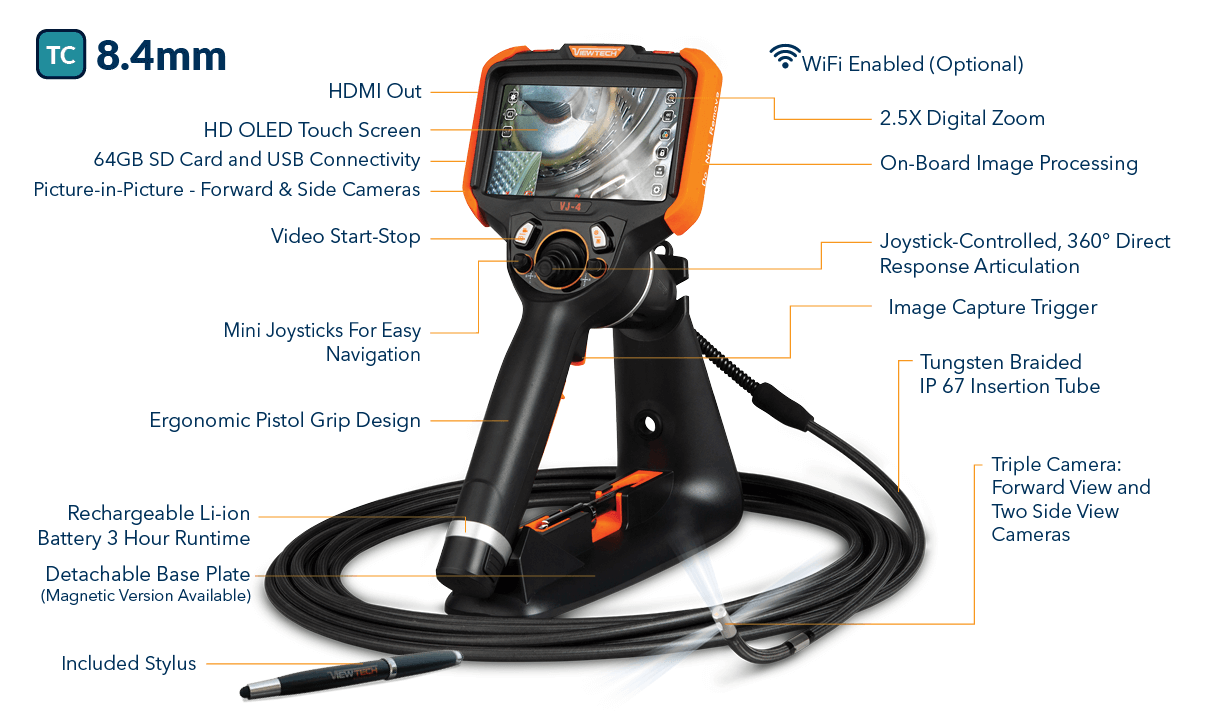

Base Unit
| Display Monitor | 5.5″ OLED touch screen |
| Articulation Control | Thumb-actuated, mechanical rocker |
| Joystick Lock | Automatic |
| Brightness Control | 10-step LED brightness adjustment |
| Control Buttons | Two multi-function mini joysticks and left/right buttons |
| Playback | Photos, videos (w/wo audio), thumbnail view |
| Audio / Microphone | 3.5mm port |
| Removable Storage | All media captured on removable SD Card. Base Unit has no internal media storage capabilities. |
| Data I/O ports | SD card, HDMI, USB Type C |
| Battery | Two 18650B PCB-Protected Li-ion batteries (rechargeable) |
| Operating Method | One handed, portable |
| Dimensions | 13.6″ x 6.2″ x 7.3″ |
| Weight | 2.09 lbs. / .95 kg |
Manufacturing and Options
| User Interface | Pop-up menu operation, menu navigation, touchscreen |
| File Management | Photo and video recording/pause, playback, thumbnail preview, delete |
| Image Control | Image freeze, image flip, zoom in/out |
| Image Format | BMP, PNG or JPG |
| Video Format | AVI or MP4 |
| Language | English, French, Spanish |
Operating Limits
| Run Time | ≤ 3 Hours |
| Operating Temp. Base Unit | -20 – 50°C, -4 – 122°F |
| Operating Temp. Insertion Tube | -20 – 70°C, -4 – 158°F |
| IP Rating, Insertion Tube | IP67 |
Viewtech Literature
VJ-4 Triple Camera BROCHURE
Download the Brochure for the ViewTech VJ-4 Triple Camera by clicking the icon above or the link below.
WiFi Instructions
Download the WiFi instructions by clicking the icon above or the link below.
VJ-4 Triple Camera USER MANUAL
Download the ViewTech VJ-4 Triple Camera User Manual by clicking the icon above or the link below.
Packed With Power
What’s Included with the Triple Camera VJ-4 Borescope:
- ViewTech’s triple camera video borescope
- 1.5m, 3.0m, 5.0m or 8.0m insertion tube
- Removable stand
- Optional magnetic floor plate stand
- Rugged carrying case
- 4 Rechargeable Li-ion batteries
- Operates on battery or AC power
- AV cords
- 64 GB full-size SD Card
- Insertion tube tip protector cap available
- Shoulder Strap
- Stylus
