Introducing the New Far Focus VJ-4 Video Borescope
The VJ-4 Far Focus video borescope comes with a 6.0mm diameter tip and has insertion tube lengths of 1.5 or 3.0 meters to suit any application. Featuring an illumination output of 70,000lux, 3x brighter than the standard VJ-4 video borescope, and depth of field beginning at .5 inches, the Far Focus sees clearly beyond the normally short focal distances of standard industrial borescopes.
If your inspection application requires greater illumination and depth of field, you owe it to yourself to demo the new 6.0mm Far Focus VJ-4. Available in 1.5 or 3.0 meters lengths.
Quality You Can Trust
Part of the ViewTech advantage is the full 1-year warranty and free loaner program.
24-7 Support
We provide outstanding service before, during, and most importantly, after your purchase.
Huge On-Site Inventory
Unlike our competitors we have hundreds of borescopes at our facility, ready to ship out.

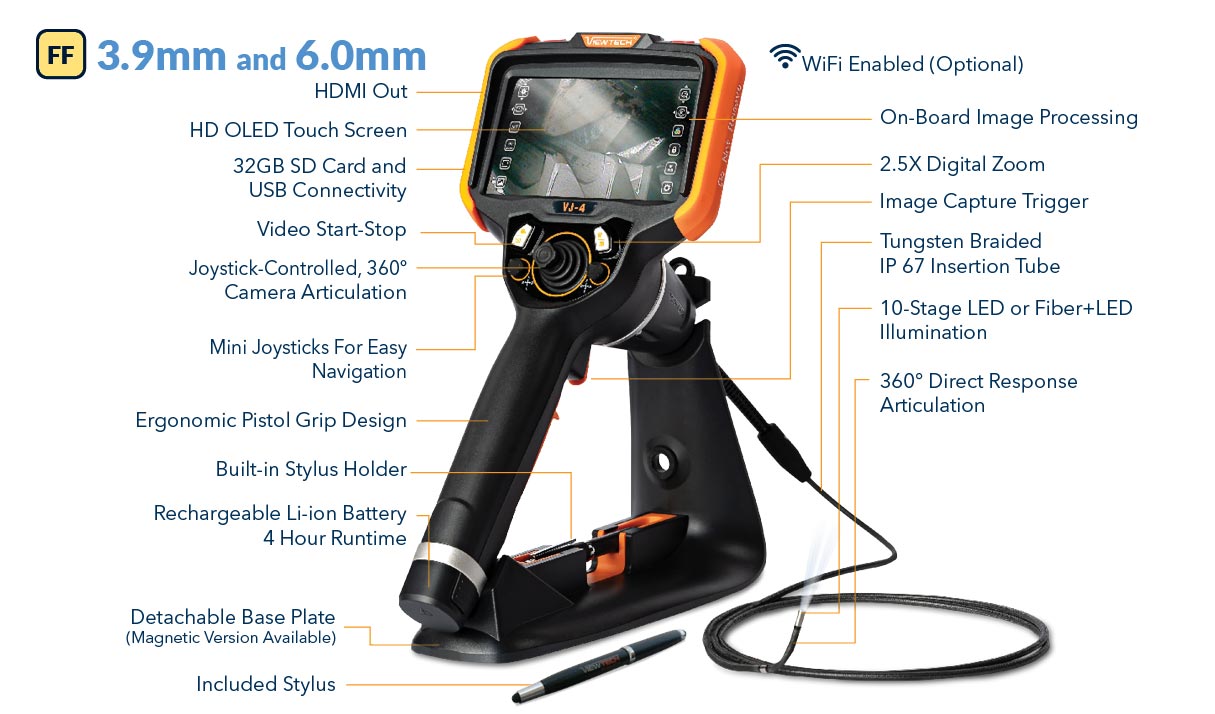

Industry-First Mini-Joysticks
Use the mini-joysticks OR touchscreen to navigate all menus and adjust all settings.
Measurement & Annotation
Easy navigation of the pop-up menus, on-screen annotation and relative measurement.
Easy Organization & Storage
Rename folders, images and video files, and set a default storage location for each inspection.
Insertion Tube
| Outer Diameter | 6.0mm |
| Length | 1.5m or 3.0m |
| Exterior Material | Tungsten EasyGlide, crush-resistant |
| Chemical Compatibility | Water, machine oil, heating oil, diesel, 3.5% saline concentrate |
| Articulation Range | 360° around, 170±10° backward (1.5m), 120±10° backward (3.0m) |
Optics
| Angle of View | 80° |
| Depth of Field | 50mm – ∞ |
| Effective Pixels | 921,600 pixels |
| Illumination Method | 6 Super high-intensity white LEDs |
| Illumination Output | ≤ 70,000lux |
Base Unit
| Display Monitor | 5.5″ OLED touch screen |
| Articulation Control | Thumb-actuated, mechanical rocker |
| Joystick Lock | Automatic |
| Brightness Control | 10-step LED brightness adjustment |
| Control Buttons | Two multi-function mini joysticks and left/right buttons |
| Playback | Photos, videos (w/wo audio), thumbnail view |
| Audio / Microphone | 3.5mm port |
| Removable Storage | All media captured on removable SD Card. Base Unit has no internal media storage capabilities. |
| Data I/O ports | SD card, HDMI, USB Type C |
| Battery | Two 18650B PCB-Protected Li-ion batteries (rechargeable) |
| Operating Method | One handed, portable |
| Dimensions | 13.6″ x 6.2″ x 7.3″ |
| Weight | 2.09 lbs. / .95 kg |
Manufacturing and Options
| User Interface | Pop-up menu operation, menu navigation, touchscreen |
| File Management | Photo and video recording/pause, playback, thumbnail preview, delete |
| Image Control | Image freeze, image flip, zoom in/out |
| Image Format | BMP, PNG or JPG |
| Video Format | AVI or MP4 |
| Language | English, French, Spanish |
Operating Limits
| Run Time | ≤ 3 Hours |
| Operating Temp. Base Unit | -20 – 50°C, -4 – 122°F |
| Operating Temp. Insertion Tube | -20 – 70°C, -4 – 158°F |
| IP Rating, Insertion Tube | IP67 |
Viewtech Literature
VJ-4 FAR FOCUS BROCHURE
Download the Brochure for the ViewTech VJ-4 Far Focus by clicking the icon above or the link below.
WiFi Instructions
Download the WiFi instructions by clicking the icon above or the link below.
VJ-4 6.0mm USER MANUAL
Download the ViewTech VJ-4 6.0mm User Manual by clicking the icon above or the link below.
Packed With Power
What’s Included with the Far Focus VJ-4 Borescope:
- ViewTech’s 6.0mm Far Focus video borescope
- 1.5m or 3.0m insertion tube
- Removable stand
- Optional magnetic floor plate stand
- Rugged carrying case
- 4 Rechargeable Li-ion batteries
- Operates on battery or AC power
- AV cords
- 32 GB full-size SD Card
- Insertion tube tip protector cap available
- Shoulder Strap
- Stylus
