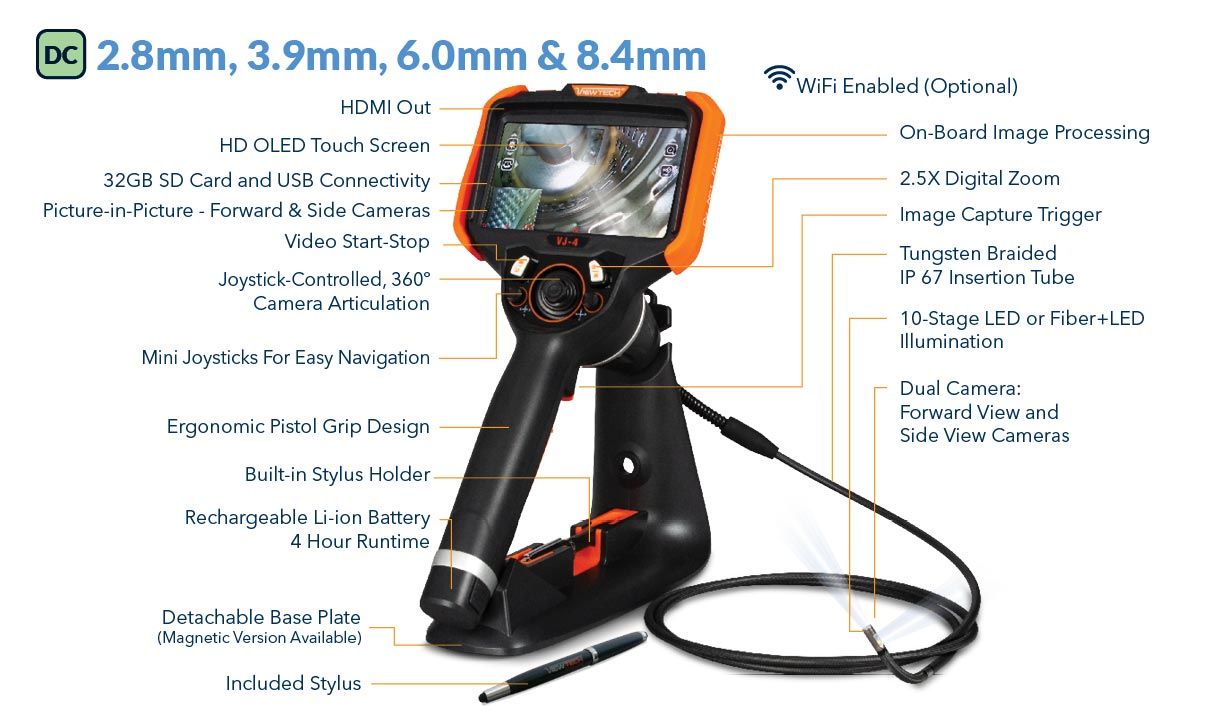

Introducing the New Articulating Dual Camera VJ-4 Video Borescope
The new VJ-4 Dual Camera video borescope comes with a 8.4mm, 6.0mm, 3.9mm or 2.8mm diameter tip and has insertion tube lengths of 1.0 meter to 8.0 meters. The VJ-4 Dual Camera looks straight ahead with the forward facing camera, and 90 degrees to the side with the side facing camera. Users can switch between the two cameras while keeping the borescope inside the current inspection area. Like all other VJ-4 borescopes, the Dual Camera borescopes feature Reference Measurement and On-Screen Annotation functionality.
If you perform regular maintenance inspections, you owe it to yourself to demo the new Dual Camera VJ-4. Available in 1.0m, 1.5m, 3.0m, 5.0m or 8.0m lengths.
Articulating Dual Camera Modules – Now Available in Four Sizes
Quality You Can Trust
Part of the ViewTech advantage is the full 1-year warranty and free loaner program.
24-7 Support
We provide outstanding service before, during, and most importantly, after your purchase.
Huge On-Site Inventory
Unlike our competitors we have hundreds of borescopes at our facility, ready to ship out.
Industry-First Mini-Joysticks
Use the mini-joysticks OR touchscreen to navigate all menus and adjust all settings.
Measurement & Annotation
Easy navigation of the pop-up menus, on-screen annotation and relative measurement.
Easy Organization & Storage
Rename folders, images and video files, and set a default storage location for each inspection.
Insertion Tube
| Outer Diameter | 2.8mm, 3.9mm, 6.0mm or 8.0mm |
| Length | 1.0m, 1.5m, 3.0m, 5.0 or 8.0m |
| Exterior Material | Tungsten EasyGlide, crush-resistant |
| Chemical Compatibility | Water, machine oil, heating oil, diesel, 3.5% saline concentrate |
| Articulation Range | 2.8mm:
360° around 3.9mm: 360° around 6.0mm: 360° around 8.0mm: 360° around |
Optics
| Angle of View | 2.8mm:
120° (front) 3.9mm: LED FV & SV 6.0mm & 8.0mm: 100° (front) |
| Depth of Field | 2.8mm:
Front View: 3.0mm – 50.0mm 3.9mm: LED FV & SV 6.0mm: Front View: 8.0mm – 100.0mm 8.0mm: Front View: 8.0mm – 100.0mm |
| Effective Pixels | 2.8mm:
160,000 pixels 3.9mm: LED FV & SV Fiber FV / LED SV 6.0mm & 8.0mm: 921,600 pixels |
| Illumination Method | 6 Super high-intensity white LEDs |
| Illumination Output | 2.8mm:
Front View ≤ 6,000lux 3.9mm: LED FV & SV Fiber FV / LED SV 6.0mm & 8.0mm: Front View ≤ 30,000lux |
Base Unit
| Display Monitor | 5.5″ OLED touch screen |
| Articulation Control | Thumb-actuated, mechanical rocker |
| Joystick Lock | Automatic |
| Brightness Control | 10-step LED brightness adjustment |
| Control Buttons | Two multi-function mini joysticks and left/right buttons |
| Playback | Photos, videos (w/wo audio), thumbnail view |
| Audio / Microphone | 3.5mm port |
| Removable Storage | All media captured on removable SD Card. Base Unit has no internal media storage capabilities. |
| Data I/O ports | SD card, HDMI, USB Type C |
| Battery | Two 18650B PCB-Protected Li-ion batteries (rechargeable) |
| Operating Method | One handed, portable |
| Dimensions | 13.6″ x 6.2″ x 7.3″ |
| Weight | 2.09 lbs. / .95 kg |
Manufacturing and Options
| User Interface | Pop-up menu operation, menu navigation, touchscreen |
| File Management | Photo and video recording/pause, playback, thumbnail preview, delete |
| Image Control | Image freeze, image flip, zoom in/out |
| Image Format | BMP, PNG or JPG |
| Video Format | AVI or MP4 |
| Language | English, French, Spanish |
Operating Limits
| Run Time | ≤ 3 Hours |
| Operating Temp. Base Unit | -20 – 50°C, -4 – 122°F |
| Operating Temp. Insertion Tube | -20 – 70°C, -4 – 158°F |
| IP Rating, Insertion Tube | IP67 |
Viewtech Literature
VJ-4 Dual Camera BROCHURE
Download the Brochure for the ViewTech VJ-4 Dual Camera by clicking the icon above or the link below.
Download the VJ-4 Dual Camera Brochure PDF
Download the VJ-4 8.4mm Dual Camera Brochure PDF
Download the VJ-4 6.0mm Dual Camera Brochure PDF
WiFi Instructions
Download the WiFi instructions by clicking the icon above or the link below.
VJ-4 Dual Camera USER MANUAL
Download the ViewTech VJ-4 Dual Camera User Manual by clicking the icon above or the link below.
Packed With Power
What’s Included with the Dual Camera VJ-4 Borescope:
- ViewTech’s dual camera video borescope
- 1.0m, 1.5m, 3.0m or 8.0m insertion tube
- Removable stand
- Optional magnetic floor plate stand
- Rugged carrying case
- 4 Rechargeable Li-ion batteries
- Operates on battery or AC power
- AV cords
- 32 GB full-size SD Card
- Insertion tube tip protector cap available
- Shoulder Strap
- Stylus
