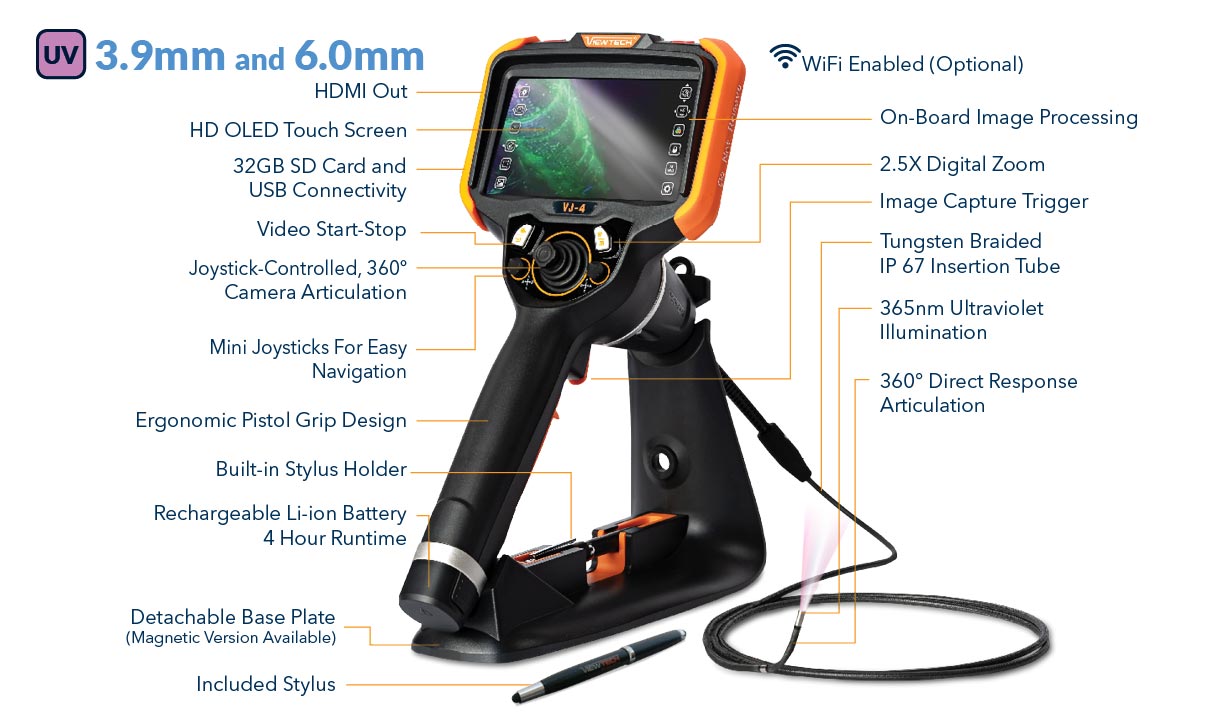

Introducing the New Ultraviolet VJ-4 Video Borescope
The VJ-4 Ultraviolet (UV) borescope comes with a 6.0mm or 3.9mm diameter tip and has insertion tube lengths of 1.5m or 3.0m to suit any application. UV light can help detect marks and substances that cannot be found under ordinary white light. UV borescopes are widely used in the work of special coating reverse optimization and hazardous article searching where UV reactant can be easily detected.
If your inspection application requires ultraviolet light, you owe it to yourself to demo the new Ultraviolet VJ-4. Available in 1.5m and 3.0m lengths.
Quality You Can Trust
Part of the ViewTech advantage is the full 1-year warranty and free loaner program.
24-7 Support
We provide outstanding service before, during, and most importantly, after your purchase.
Huge On-Site Inventory
Unlike our competitors we have hundreds of borescopes at our facility, ready to ship out.
Industry-First Mini-Joysticks
Use the mini-joysticks OR touchscreen to navigate all menus and adjust all settings.
Measurement & Annotation
Easy navigation of the pop-up menus, on-screen annotation and relative measurement.
Easy Organization & Storage
Rename folders, images and video files, and set a default storage location for each inspection.
Insertion Tube
| Outer Diameter | 3.9mm or 6.0mm |
| Length | 1.5m or 3.0m |
| Exterior Material | Tungsten EasyGlide, crush-resistant |
| Chemical Compatibility | Water, machine oil, heating oil, diesel, 3.5% saline concentrate |
| Articulation Range | 360° around, 170±10° backward (1.5m), 150±10° backward (3.0m) |
Optics
| Angle of View | 120° |
| Depth of Field | 3.0mm – 50.0mm |
| Effective Pixels | 160,000 pixels (1.5m, 3.0m) |
| Illumination Method | Ultraviolet |
| [mW] | UV: 35mW, 365nm or UV: 60mW, 365nm |
Base Unit
| Display Monitor | 5.5″ OLED touch screen |
| Articulation Control | Thumb-actuated, mechanical rocker |
| Joystick Lock | Automatic |
| Brightness Control | 10-step Ultraviolet adjustment |
| Control Buttons | Two multi-function mini joysticks and left/right buttons |
| Playback | Photos, videos (w/wo audio), thumbnail view |
| Audio / Microphone | 3.5mm port |
| Removable Storage | All media captured on removable SD Card. Base Unit has no internal media storage capabilities. |
| Data I/O ports | SD card, HDMI, USB Type C |
| Battery | Two 18650B PCB-Protected Li-ion batteries (rechargeable) |
| Operating Method | One handed, portable |
| Dimensions | 13.6″ x 6.2″ x 7.3″ |
| Weight | 2.09 lbs. / .95 kg |
Manufacturing and Options
| User Interface | Pop-up menu operation, menu navigation, touchscreen |
| File Management | Photo and video recording/pause, playback, thumbnail preview, delete |
| Image Control | Image freeze, image flip, zoom in/out |
| Image Format | BMP, PNG or JPG |
| Video Format | AVI or MP4 |
| Language | English, French, Spanish |
Operating Limits
| Run Time | ≤ 3 Hours |
| Operating Temp. Base Unit | -20 – 50°C, -4 – 122°F |
| Operating Temp. Insertion Tube | -20 – 70°C, -4 – 158°F |
| IP Rating, Insertion Tube | IP67 |
Viewtech Literature
VJ-4 UV BROCHURE
Download the Brochure for the ViewTech VJ-4 Ultraviolet by clicking the icon above or the link below.
WiFi Instructions
Download the WiFi instructions by clicking the icon above or the link below.
VJ-4 6.0mm USER MANUAL
Download the ViewTech VJ-4 6.0mm User Manual by clicking the icon above or the link below.
Packed With Power
What’s Included with the Ultraviolet VJ-4 Borescope:
- ViewTech’s 6.0mm or 3.9mm Ultraviolet (UV) borescope
- 1.5m or 3.0m insertion tube
- Removable stand
- Optional magnetic floor plate stand
- Rugged carrying case
- 4 Rechargeable Li-ion batteries
- Battery charger
- AV cords
- 32 GB full-size SD Card
- Insertion tube tip protector cap available
- Shoulder Strap
- Stylus
